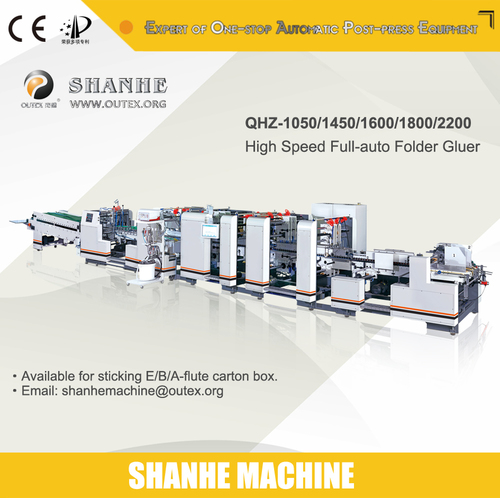

High Speed Full Auto Folder Gluer

High Speed Full Auto Folder Gluer
High Speed Full Auto Folder Gluer
Product Code : 11
Product Description

Incorporated in the year 1994, we are betrothed in offering High Speed Full Auto Folder Gluer. This gluer is suitable for gluing application in pharmaceutical, food processing and many other industries. Available in different technical specifications, this gluer is is also examined on various aspects of quality. Moreover, the offered High Speed Full Auto Folder Gluer is manufactured using supreme quality components by our adept professionals.

Features:

  • Elevated durability
  • Smooth operations
  • Sturdiness
  • Trouble free functionality

I. INTRODUCTION

SUPER HEAVY TYPE MACHINE

1. It adopts the adjusted mechanism of fluctuated tooth-like lever, also it can be separated to micro-operate.

2. At paper feeding part, there are many straps driving vibrating motor, which can ensure constant and accurate paper feeding.

3. Two outer devices of left and right side of upper gluing box is suitable for the use of bottom sticking and side sticking.

4. Two outer devices of left and right side of lower gluing box is suitable fort he uses of special-shape box.

5. It is equipped with fold-back belts and folding knife for your alternative.

6. It adopts variable-frequency and variable-speed motor, PLC control system and original units and components imported from Japan.

7. Traveling wheels of belts are machined in digitally-controlled way to avoid vibration under high speed and extend service life.

8. Spindle and connecting shaft are made of hard chromium rods to avoid cladding peel-off and assure durable appearance and stability.

9. Main drive adopts imported belt and frequency conversion motor to make sure the equipment works stably and accurately at high speed.

II. CONFIGURATION

Auto paper feeding part + gluing part + positioning part + folding part + pressing part

III. SPECIFICATION

Model

QHZ-1050

QHZ-1450

QHZ-1600

QHZ-1800

QHZ-2200

Function

4-fold, side & bottom gluing

4-fold, side & bottom gluing

 4-fold, side & bottom gluing

 4-fold, side & bottom gluing

 4-fold, side & bottom gluing

Max. unfold width (mm)

1050

1450

1600

1800

2200

Min. unfold width (mm)

400-500

400-500

450-700

450-700

500-800

Max. speed (m/min)

180

180

 180

 180

 180

Total power (kw)

17

22

22

22

25

Total weight (kg)

10000

12000

14000

16000

18000

Dimension (mm)

15600x2000

16500x2300

16500x2500

16500x2700

16500x2800



SHANTOU SHANHE INDUSTRIAL CO., LTD.
Shanhe Industrial Park, Huaxincheng of Chaoshan RoadShantou - 515000, Guangdong, China
Mrs. Joyce Zhuang (Sales Manager)
