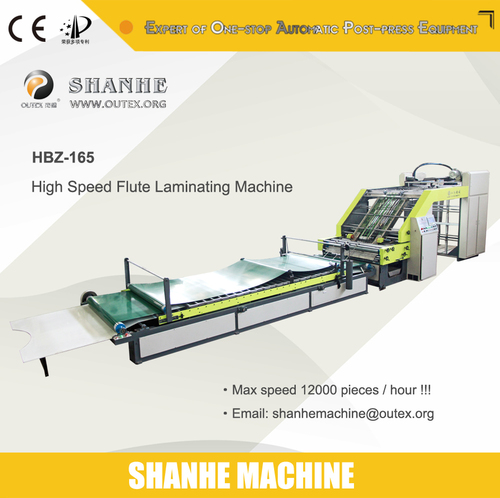

High Speed Flute Lamintor

High Speed Flute Lamintor
High Speed Flute Lamintor
Product Code : 13
Product Description

INTRODUCTION:

Model HBZ flute laminating machine is our blockbuster intelligent machine, which aims at fulfilling clients’ requirements of fast delivery, high production efficiency and lower labor cost. The machine design meets the requirement  of  left &  right,  front & back laminating assignment.  The Omni-bearing upgrade  includes the installation of three servo motors and CPU assignment controller, which achieves computer control; makes sure  the  most  precise  location  during  the  high  speed  operation. Machine’s highest speed can reach 12000pcs/hr. Machine applies to the lamination between colorful printed paper and corrugated board (A/B/C/D/E/F/N-flute, 3 layers, 4 layers, 5 layers and 7 layers), cardboard or grey board. The finished products are even without any folds or deformation. Machine’s appearance is coordinated and the structure is solid and strong; the chosen material totally meets the design demand

TECHNICAL SPECIFICATION:

  • Max paper size: 1300x1650mm
  • Min paper size: 350x350mm
  • Top sheet thickness: 170g/㎡-1100 g/㎡
  • Machine speed: 12000pcs/hr
  • Machine power: 15.6kw
  • Machine size: 13000x2300x2600mm (LxWxH)
  • Machine weight: 7500kg
